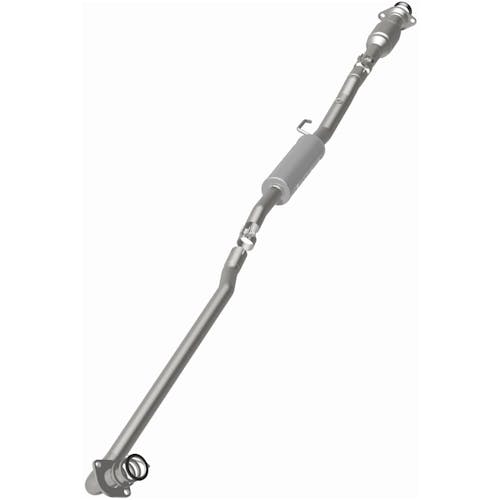

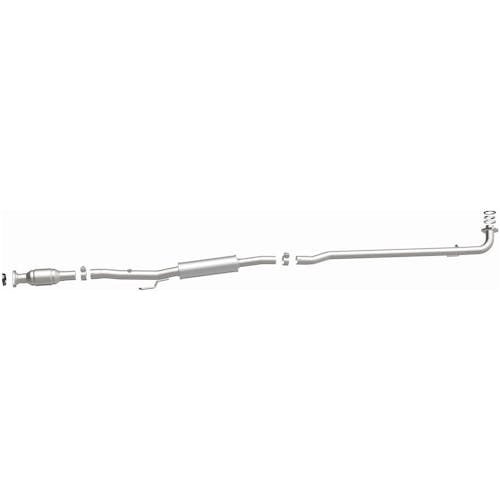

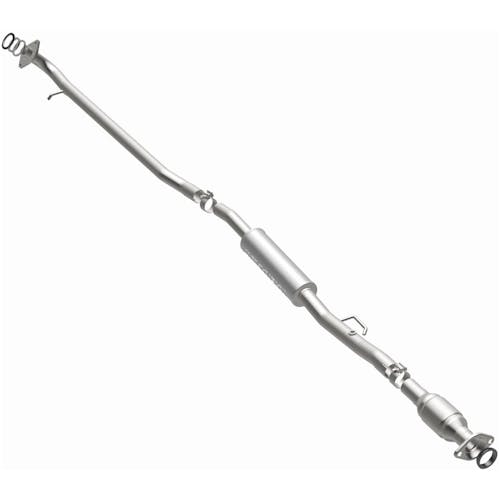

Magnaflow California Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 441072. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2000-2001 Toyota Avalon, 1999-2001 Lexus ES300, and more, this direct-fit catalytic converter also interchanges with OE parts 17420-20140 and 17420-20160, among others. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Information:
Designed to meet California emissions standards, as well of those of other CARB-regulated states.
Application Summary:
| Year |
Make/Model |
| 1999-2001 |
Lexus ES300 |
| 1995-2001 |
Mazda Millenia |
| 2000-2001 |
Toyota Avalon |
| Attributes |
| ASIN |
B00FG9NGGA |
| Air Tube Adaptable |
No |
| Anticipated Ship Out Time |
Approximately 1-2 Days |
| Body Length |
9.500 in. |
| Body Length (in.) |
9.5 |
| Body Material |
Stainless Steel |
| Body Width |
4.000 in. |
| Body Width (in.) |
4 |
| CARB Executive Order Number |
D-193-96 |
| CAT Converter Air Tube Adapter |
Not Air Tube Kit Adaptable |
| California Air Board Approved |
Yes |
| California Air Resources Board (CARB) |
Yes |
| California Proposition 65 |
No |
| Catalytic Converter Air Tube Adapter |
Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material |
Stainless |
| Catalytic Converter Format |
Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Overall Length |
107 |
| Catalytic Converter Oxygen Sensor Location |
Post Converter |
| Clamps Included |
Yes |
| Components |
Band Clamp=2;Flange Ring=1;Gasket=2 |
| Converter Body Size |
OEM |
| Converter Quantity |
1 |
| Core Substrate Material |
Ceramic |
| Country of Origin (Primary) |
US |
| Emission |
California |
| Emission Code |
Legal US |
| Exhaust Component Mount Type |
Uses Factory Hangers |
| Exhaust Pipe Material |
Stainless Steel |
| Finish |
Stainless Steel |
| GTIN |
00841380096227 |
| Gasket Or Seal Included |
Yes |
| Harmonized Tariff Code (Schedule B) |
8421320000 |
| Hazardous Material Code |
N |
| Inlet Attachment |
Bolt-On |
| Inlet Attachment Type |
Bolt-On |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Inside Diameter (in.) |
2.25 |
| Inlet Size (in.) |
2.25 |
| Inlet Type |
Bolt-On |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2.250 in. |
| Main Piping Diameter (in.) |
2.25 |
| Material |
Stainless Steel |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Outlet Outside Diameter |
2.250 in. |
| Outlet Outside Diameter (in.) |
2.25 |
| Outlet Size (in.) |
2.25 |
| Overall Length |
107.000 in. |
| Overall Length (in.) |
107.000 in. |
| Oversize Shipping |
841380096227 |
| Oxygen Sensor Location |
Post Converter |
| Recommended Use |
Converter |
| SDR Required Flag |
N |
| Series |
California |
| Subtitle |
California / CARB Compliant |
| Subtitles |
California / CARB Compliant |
| Type |
Direct-Fit |
| Universal Or Specific Fit |
Specific |
| Warranty Time |
5 |
