K&N's roto-molded cold air intake systems are guaranteed to provide an increase in horsepower and torque, and are protected by the K&N No-Hassle Lifetime Limited Warranty.
A high-density polyethylene (HDPE) rotationally-molded tube helps increase the volume of airflow to your engine, and provides a guaranteed increase in horsepower and torque. These systems are paired with a washable, reusable High-Flow Air Filter featuring oiled cotton filter media. The oversized, conical design allows you to go up to 100,000 miles between filter services under normal highway driving conditions. A custom heat shield helps protect intake air from the high temperature of your engine bay, and the entire system can typically be installed in less than 60 minutes.
- Guaranteed to increase horsepower and torque
Information:
Guaranteed Horsepower Gain; Designed To Improve Throttle Response And Engine Sound; Easy To Install; Replaces Entire Factory Air Intake System; Lasts Up To 100 000 Miles Before Service Required
Application Summary:
| Year |
Make/Model |
| 2015-2025 |
Ford F-150 |
| Attributes |
| ASIN |
B01BNUSEZ8 |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
6.500 in. (165mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
6.000 in. (152mm) |
| Air Filter Oulet Width |
6.000 in. (152mm) |
| Air Filter Outlet Length |
6.000 in. (152mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
6.000 in. (152mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
63-2593 |
| Alternate Replacement Filter |
RF-1042/RU-1042XD |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
7 |
| Clamp Style |
Regular |
| Clamps Included |
7 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
2 |
| Emission Code |
Not in CA |

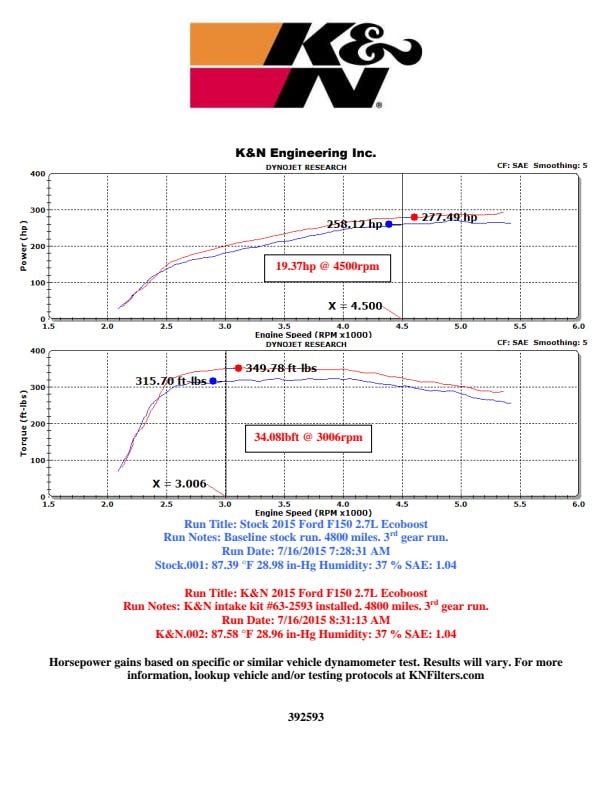

| Estimated Horse Power Gain |
19.37 HP @ 4500 RPM |
| Estimated Horsepower Gain |
19.37 HP @ 4500 RPM |
| Estimated Torque Gain |
34 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| GTIN |
00024844358202 |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
19 HP |
| Intake Pipe Color |
None |
| Intake Pipe Color / Finish |
None |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
10.900 lbs. (4.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
14.5 in (368 mm), 14.500 in. (368mm) |
| Product Box Length |
24.1 in (612 mm), 24.100 in. (612mm) |
| Product Box Width |
15.5 in (394 mm), 15.500 in. (394 mm) |
| Product Style |
63 Series Aircharger Kits |
| RPM |
4500 |
| Replacement Filter |
RU-1042, RF-1042 |
| SDR Required Flag |
N |
| Street Legal |
No |
| Street Legal In All US States |
No, Not legal for sale or use in California on any pollution controlled motor vehicle. |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
10.9 lb (4.9 kg) |
