K&N's roto-molded cold air intake systems are guaranteed to provide an increase in horsepower and torque, and are protected by the K&N No-Hassle Lifetime Limited Warranty.
A high-density polyethylene (HDPE) rotationally-molded tube helps increase the volume of airflow to your engine, and provides a guaranteed increase in horsepower and torque. These systems are paired with a washable, reusable High-Flow Air Filter featuring oiled cotton filter media. The oversized, conical design allows you to go up to 100,000 miles between filter services under normal highway driving conditions. A custom heat shield helps protect intake air from the high temperature of your engine bay, and the entire system can typically be installed in less than 60 minutes.
- Guaranteed to increase horsepower and torque
Information:
Designed To Increase Power 10%; Million Mile Warranty; Reduces Intake Restriction; Easy To Install; Reusable/Washable; Long Lasting Performance
Application Summary:
| Year |
Make/Model |
| 2013-2016 |
Ford Fusion |
| Attributes |
| ASIN |
B0168P4VQY |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
5.438 in. (138mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
0.781 in. (20mm) |
| Air Filter Oulet Width |
3.250 in. (83mm) |
| Air Filter Outlet Length |
0.781 in. (20mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.250 in. (83mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
57-2585 |
| CARB EO Number |
D-269-63 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Steel |
| Clamp Quantity |
3 |
| Clamp Style |
Regular |
| Clamps Included |
3 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
1 |
| Emission Code |
Legal US |

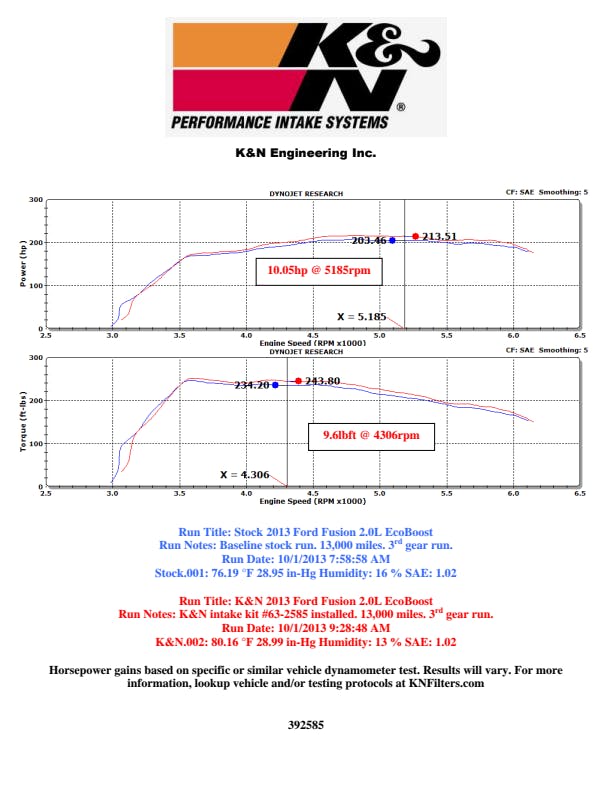

| Estimated Horse Power Gain |
10.05 HP @ 5185 RPM |
| Estimated Horsepower Gain |
10.05 HP @ 5185 RPM |
| Estimated Torque Gain |
10 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| GTIN |
00024844361301 |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
10 HP |
| Intake Pipe Color |
Black |
| Intake Pipe Color / Finish |
Black |
| Intake Pipe Material |
High-Density Cross-Linked Polyethylene |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
8.300 lbs. (3.8 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.5 in (318 mm), 12.500 in. (318mm) |
| Product Box Length |
22.25 in (565 mm), 22.250 in. (565mm) |
| Product Box Width |
14.25 in (362 mm), 14.250 in. (362 mm) |
| Product Style |
57 Series FIPK |
| RPM |
5185 |
| Replacement Filter |
RU-1637 |
| SDR Required Flag |
N |
| Street Legal |
Yes |
| Street Legal In All US States |
Yes, Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com. |
| TUV Approved (Europe) |
No, No |
| Type |
Gen II |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
8.3 lb (3.8 kg) |
