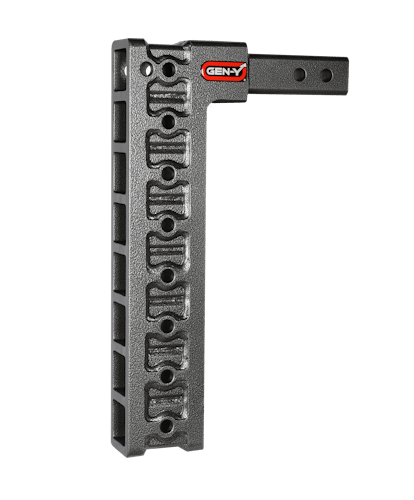

MEGA-DUTY 2" Shank 17.5" Drop 2K TW 16K Hitch & GH-0100 Stabilizer Kit
The possibilities are endless with the GEN-Y Mega-Duty adjustable hitch. Not only is our product convenient for customers towing with multiple applications, but also heavy-duty and built to last a lifetime. Our products are designed to improve safety and convenience for customers, ranging anywhere from boaters and off-roaders to serious outdoorsmen. Therefore, the MEGA-DUTY is a great choice for any towing needs. In addition to towing, our product can be used for other applications such as any bicycle rack, motorcycle carrier, cargo rack, etc. Another feature that sets the MEGA-DUTY apart from other hitches is the adjustability. The desired height of the attachment is adjusted by simply removing the pin and moving the ball mount to that position. The hookup is simple and fast and also ensures that the trailer is being towed as level as possible. Our products are designed and tested to be used in the drop or rise position, which provides even more versatility. The GEN-Y Mega-Duty gets the job done faster and can be adapted to almost any bumper style trailer and pintle style couplings. All GEN-Y HITCH products are rigorously tested and exceed the SAE-J684 Weight Testing.
- 2, 2.5, and 3 Receiver Options
- Designed for 1.5 or smaller lunette rings
- Limited Lifetime Warranty
- 10,000 - 32,000 lbs. Towing Capacity
- 1,500 - 3,500 lbs. Tongue Weight
- Drop/Raise Range: 5 to 22 1/2
- Versa Ball: 2 and 2 5/16
- Fabricated with Heavy-Duty Steel
- Sand Blasted and Coated with a Durable Silver-Vein Powder Coat
- Made in the USA
Information:
Never exceed the recommended capacity on any trailer tow coupling or vehicle receiver hitch
Application Summary:
| Year |
Make/Model |
| Fits |
2 Receiver |
| Attributes |
| Add-On |
N/A |
| Adjustable |
Yes |
| Ball Diameter (in) |
1 |
| Ball Diameter (mm) |
1 |
| Box Number |
Ships in 2 boxes, including GH-0100-28x6x8. |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Class Rating |
5, 5 |
| Color |
Silver Vein, Silver Vein |
| Country of Origin (Primary) |
US |
| Drop (in) |
17.5 |
| Drop (mm) |
444.5 |
| Drop Measurement |
17.5, 17.5 |
| Drop/Raise Range |
17.5" |
| Dual Ball Included |
No |
| Finish |
Powder Coat |
| Full Pallet Qty |
18 |
| Full Pallet Quantity |
18 |
| GTIN |
00810006120585 |
| Gross Towing Weight |
16000 lbs, 16000 |
| Harmonized Tariff Code (Schedule B) |
8708990000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Steel, Steel |
| Maximum Tongue Weight |
2,000 LBS |
| NAFTA Preference Criterion Code |
B |
| Number Of Hitch Balls Included |
1 |
| Optimal Tongue Weight Range |
N/A |
| Overall Length (in) |
20-1/2 Inch |
| Pintle Lock Included |
No |
| Receiver Size (IN) |
2 |
| Rise (in) |
17.5 |
| SDR Required Flag |
N |
| Shank Length |
5.313, 5.313 |
| Shank Size |
2", 2, 2 |
| Shank Size (in) |
2 |
| Shank Size (mm) |
50.8 |
| Ship Method |
Ground |
| Stabilizer Kit Included |
Yes |
| Tongue Weight |
2000, 2000 |
| Towing Capacity |
10,000 - 32,000 lbs., 16000 |
| Versa Ball Included |
No |
