Application specific valving to maximize performance.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
- Adjustable Through Shaft Stabilizer
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- External Reservoir With Compression Adjusted
- Black Anodized CNC Machined Aluminum Components
Information:
Uncompromised performance through FOX s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX s ride zone - combining a race-developed shock piston; internal bypass and Dual Speed Compression adjustment - allowing fine tuning for weight; terrain and speed.Dominate any terrain with the brute strength of 3-and 2.5-in. aluminum bodies; cactus cooler reservoirs and 7/8in. shafts with redundant seals; all proven in the harshest of environments under the toughest of conditions.Application Summary:
| Year | Make/Model |
|---|---|
| 2017-2023 | Ford F-250 Super Duty |
| 2017-2023 | Ford F-350 Super Duty |
| Attributes | |
| Body Material | Aluminum |
| Bottom Mount | Eyelet |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length | 17.150 in. |
| Collapsed Length (in.) | 17.150 in. |
| Color | Aluminum |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Extended Length | 22.200 in. |
| Extended Length (in.) | 25.250 in. |
| FOX CATALOG | TRUCK |
| GTIN | 00788000424032 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| Position | Front |
| Reservoir Type | Remote |
| SDR Required Flag | N |
| Series | Factory Race |
| Shock Stroke | 8.100 in. |
| Size | 2 in. |
| Top Mount | Eyelet |
| Type | Stabilizer |
| Warranty Time | 12 |

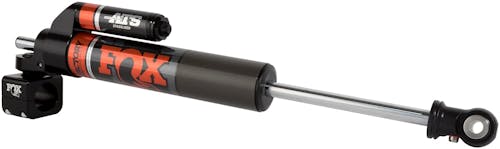

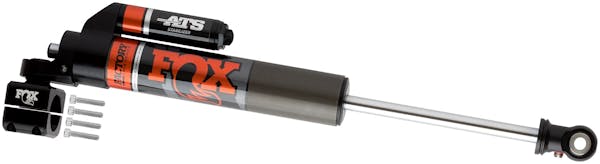

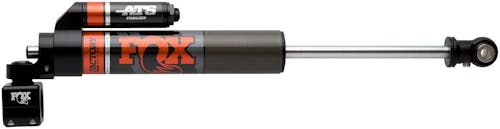

Fox Factory Inc 983-02-143 FACTORY RACE SERIES 2.0 ATS STABILIZER
Product Information
- Brand: Fox Factory Inc
- Product Number: 983-02-143
- Availability: 6 in stock at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$499.95
Install with Alignment +$193.75
