Application specific valving to maximize performance.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
- Packed With 35 Years Of Race Winning Technology
- Durable Zinc Plated Seamless Alloy Body
- Industry-Leading 17-4 H900 Stainless Steel Shaft
- ORB O-Ring Port Fittings Deliver A Superior Seal
- Black Anodized CNC Machined Aluminum Components
- 100% Serviceable And Tunable For Longer Lifespan
- Teflon-Lined Heat-Treated Spherical Bearings
- Redundant Sealing System/Long Lasting Performance
Information:
Uncompromised performance through FOX s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX s ride zone - combining a race-developed shock piston; internal bypass and Dual Speed Compression adjustment - allowing fine tuning for weight; terrain and speed.Dominate any terrain with the brute strength of 3-and 2.5-in. aluminum bodies; cactus cooler reservoirs and 7/8in. shafts with redundant seals; all proven in the harshest of environments under the toughest of conditions.Application Summary:
| Year | Make/Model |
|---|---|
| 2017-2018 | Ford F-150 |
| Attributes | |
| Adjuster Type | DSC - Dual Speed Compression |
| Body Material | Steel |
| Bottom Mount | Eyelet |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length | 21.180 in. |
| Collapsed Length (in.) | 21.180 |
| Color | Steel |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Extended Length | 29.080 in. |
| Extended Length (in.) | 29.080 in. |
| FOX CATALOG | TRUCK |
| GTIN | 00714686861137 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |
| Reservoir Type | Remote |
| SDR Required Flag | N |
| Series | Factory Race |
| Shock Stroke | 7.900 in. |
| Shock Stroke (in.) | 7.900 |
| Size | 3 in. |
| TM P/N | TOP |
| Top Mount | TM |
| Top Mount (P/N) | TOP |
| Type | Coil-Over Shock |
| Warranty Time | 12 |

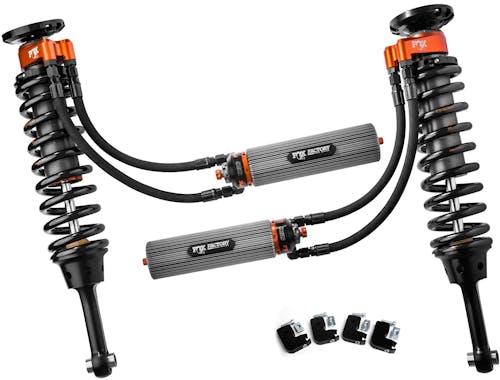

Fox Factory Inc 883-06-140 FACTORY RACE 3.0 INTERNAL BYPASS COIL-OVER RESERVOIR SHOCK PAIR -ADJUSTABLE
Product Information
- Brand: Fox Factory Inc
- Product Number: 883-06-140
- Availability: 2 in stock at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$3,699.95
Install with Alignment +$232.50
