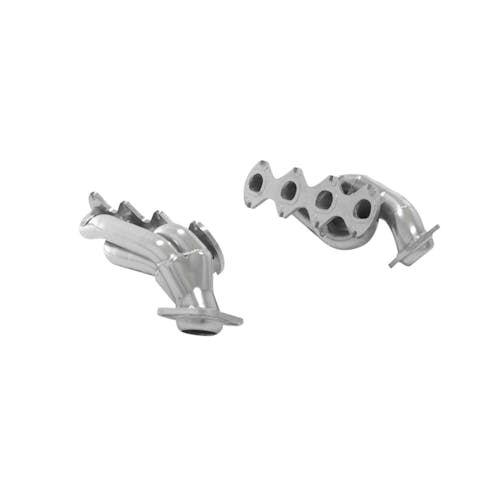

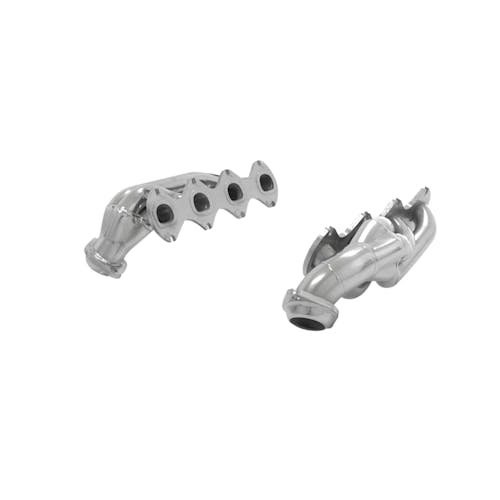

Shorty header for 2004-2010 Ford, F150, 5.4L, V8, Shorty Header, 1-5/8" Primary, 16 Gauge Tubing, 3/8" Flange, Silver Ceramic Coating, 409S Stainless Steel CARB EO D-698-18 Compliant for 2004-2010 F-150 5.4L
Flowmaster's Scavenger Series Elite shorty headers are designed to replace the restrictive factory manifolds. These high quality headers are manufactured from stainless steel and are ceramic coated for maximum durability. They feature 1-5/8 in. primary tubes, 3/8 in. thick laser cut flanges and factory collector connections, ensuring a direct-fit, leak free installation. Like all Flowmaster products, the benefits include improved throttle response, power and engine efficiency. Designed for an easy fit, these headers include gaskets and necessary hardware for easy installation. Note: this product has been granted a California Air Resources Board (CARB) exemption, an E.O. number, or is a direct or consolidated replacement part. It is 50-state legal, per the application guide for 2004-2010 5.4L models. CARB EO# D-698-18.
- 3/8in. Thick Laser Cut Flanges
- Dyno tuned for maximum performance
- High Temperature Ceramic Coating
- Stainless Steel Construction
Information:
Fits 2004 to 2010 Ford F150 with a 5.4L V8 engine, shorty header
Application Summary:
| Year |
Make/Model |
| 2004-2010 |
Ford F-150 |
| Attributes |
| Application |
Automotive |
| Attachment Method |
Stock Flange, Flanged |
| Automotive Item Grade |
High Performance Part, High Performance |
| Bolt size |
M8 x 1.25 x 25mm |
| Bolts Or Studs Included |
Yes |
| Bolts/Studs Included |
Yes, Yes |
| Brand |
Flowmaster, Flowmaster |
| Bullet Point #1 |
Stainless Steel Construction |
| Bullet Point #2 |
High Temperature Ceramic Coating |
| Bullet Point #3 |
Dyno tuned for maximum performance |
| Bullet Point #4 |
3/8in. Thick Laser Cut Flanges |
| C.A.R.B EO # |
D-698-18 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB (California) Compliant |
Yes, Yes |
| CARB EO# |
D-698 |
| Category |
Exhaust, Exhaust |
| Clamping Type |
Flat Band |
| Coated Finish |
Ceramic Coated Stainless Steel |
| Coating/Finish |
Ceramic Coated Stainless Steel |
| Collector Attachment |
Ball and Socket Flange |
| Collector Included |
Yes, Yes |
| Collector Tube Size |
N/A |
| Collector Tube Size (in.) |
N/A |
| Color |
Silver Ceramic, Silver |
| Color/Finish |
Silver Ceramic, Silver Ceramic |
| Country of Origin (Primary) |
MX |
| Design |
Shorty |
| Emission Code |
1, 7, Legal US |
| Engine |
Ford Mod Motor, Ford Modular V8 |
| Engine Make/Size |
Ford 5.4L/330 |
| Finish |
Silver Ceramic, Natural |
| Flange Thickness |
0.375 in., 3/8 |
| Gasket Or Seal Included |
Yes |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Head Style |
Block Hugger |
| Header Finish |
Silver Ceramic, Ceramic Coated |
| Header Flange Thickness |
3/8 inch, 3/8 |
| Header Flange Thickness (in) |
0.375, 3/8 inch |
| Header Series |
Scavenger Series Elite, Scavenger Series Elite |
| Header Style |
Block Hugger, Shorty |
| Inlet Port Shape |
D-Port, D-port |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
1-5/8, 1.625 |
| Material |
Stainless Steel, Stainless Steel |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
2.500 in., 2.50 |
| Outlet Diameter (in) |
2.5 |
| Oxygen Sensor Port |
No |
| part type |
Exhaust Header, Exhaust Header |
| Port Shape |
Same As Port/Can Be Matched |
| Primary Tube Dia. |
1-5/8 inch, 1-5/8 inch |
| Primary Tube Diameter |
1.625 in. |
| Primary Tube Diameter (in) |
1.625 |
| Primary Tubing Diameter |
1-5/8" |
| Product Type |
Exhaust Headers, Headers |
| Reducers Included |
No, No |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| SEMA Emissions Code |
1 |
| Series |
Scavenger Series Headers |
| Sheen Level |
High Gloss |
| Sub Category |
Exhaust Manifolds, Exhaust Manifolds |
| Subcategory |
Headers and Parts |
| Tube Diameter |
1.625 in. |
| Tube Direction |
Up Swept |
| Tube Gauge |
16, 16 |
| Tube Length |
Unequal Length |
| Tube Lengths |
Unequal Length, Unequal Length |
| Tube Size |
1.625 |
| Tube Wall Thickness |
16 |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty Time |
12 |
| GTIN |
00700042026418 |
