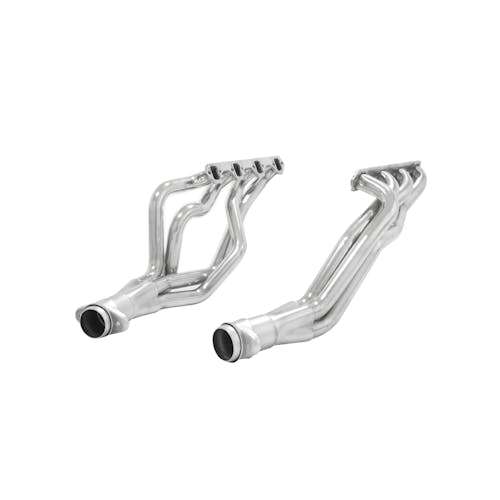

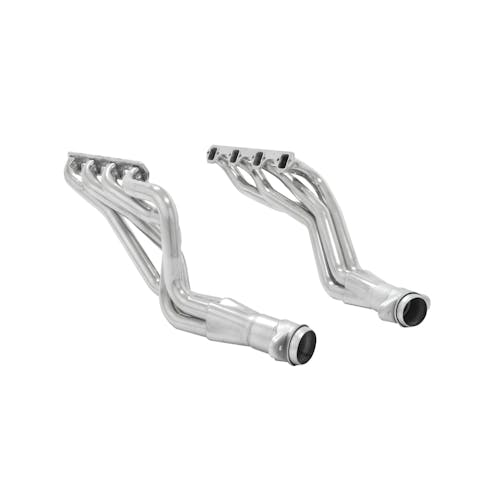

Fits 1964-1973 Mustang, 289-302 SB Engine, V8, Long Tube Headers, 1-3/4"" Primary, 3" Ball-Flange Collector, 16 Gauge Tubing, 3/8"" Flange, Silver Ceramic Coating, 409S Stainless Steel

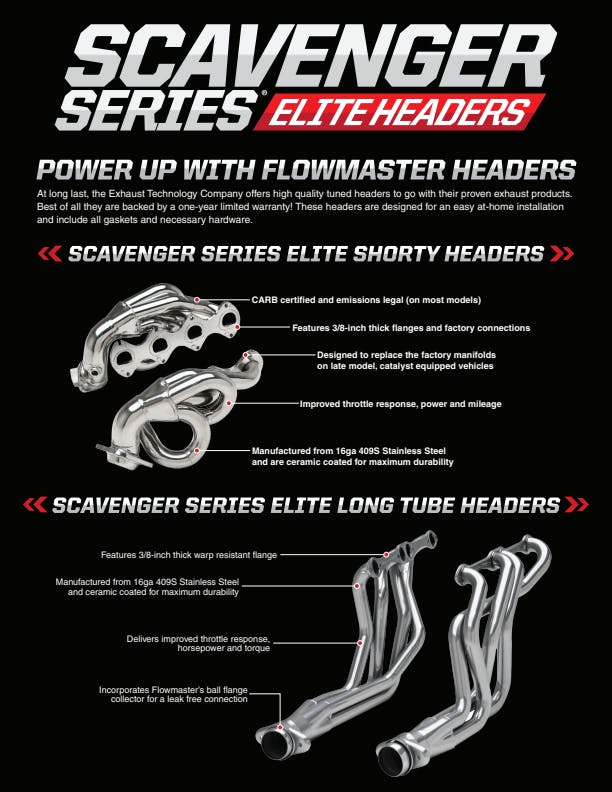

Flowmaster's Scavenger Series Elite long tube headers are designed to replace the factory cast iron manifolds. These high quality headers are manufactured from stainless steel and are ceramic coated for maximum durability. They feature 1-3/4 in. primary tubes, 3/8 in. thick flanges and incorporate Flowmaster's popular 3 in. ball flange collector connections ensuring a leak free installation. Scavenger Series long tube headers deliver maximum performance and are suited to the enthusiast who wants the best. Like all Flowmaster products the benefits include improved throttle response, power and engine efficiency. Designed for an easy fit these headers include gaskets and necessary hardware for easy installation. Note 1 - fits most Z-bars. Some vehicles may require Z-bar modification for proper fit. Note 2 - fits manual steering. Requires drop down bracket to fit with power steering. Note 3 - e-brake pivot bracket must be relocated on C6/AOD transmission. Note 4 -this product is legal only for off highway use (except in California or states that have adopted California emission standards), racing use or for use on pre-emission controlled motor vehicles/motor vehicle engines (pre-1966 domestic vehicles certified to California standards, pre-1968 domestic vehicles certified to federal standards and all pre-1968 foreign vehicles), per the application guide.
- High Temperature Ceramic Coating
- Dyno tuned for maximum performance
- Ball & Socket Collector Connections
- Stainless Steel Construction
Information:
Fits 1964 to 1973 Mustang, with a 289 or 302 small block V8 engine, long tube headers
Application Summary:
| Year |
Make/Model |
| 1964-1968 |
Ford Mustang |
| 1970-1973 |
Ford Mustang |
| Attributes |
| Application |
Automotive |
| Attachment Method |
Ball and Socket Flange, Ball & Socket Flange |
| Automotive Item Grade |
High Performance Part, High Performance |
| Bolt size |
3/8-16 x 1 |
| Bolts Or Studs Included |
Yes |
| Bolts/Studs Included |
Yes |
| Brand |
Flowmaster |
| Bullet Point #1 |
Stainless Steel Construction |
| Bullet Point #2 |
Ball & Socket Collector Connections |
| Bullet Point #3 |
Dyno tuned for maximum performance |
| Bullet Point #4 |
High Temperature Ceramic Coating |
| CARB (California) Compliant |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Exhaust |
| Coated Finish |
Ceramic Coated Stainless Steel |
| Coating/Finish |
Ceramic Coated Stainless Steel |
| Collector Diameter |
3.00 inch, 3.00 |
| Collector Included |
Yes |
| Collector Tube Size |
3.000 in. |
| Collector Tube Size (in.) |
3 |
| Color |
Silver Ceramic |
| Color/Finish |
Silver Ceramic |
| Country of Origin (Primary) |
MX |
| Emission Code |
3, Off Road |
| Engine |
Ford Small Block, Small Block Ford |
| Engine Make/Size |
Ford Small Block 302 |
| Finish |
Silver Ceramic |
| Flange Thickness |
0.375 in., 3/8 |
| GTIN |
00700042026340 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Head Style |
4-1 One-Piece |
| Header Finish |
Silver Ceramic, Ceramic Coated |
| Header Flange Thickness |
3/8 inch |
| Header Flange Thickness (in) |
0.375, 3/8 inch |
| Header Series |
Scavenger Series Elite |
| Header Style |
4-1 One-Piece, Long Tube |
| Inlet Port Shape |
Square Case |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
1-3/4, 1.75 |
| Material |
Stainless Steel |
| NAFTA Preference Criterion Code |
B |
| Outlet Diameter |
3.000 in., 3.00 |
| Outlet Diameter (in) |
3 |
| Port Shape |
Same As Port/Can Be Matched |
| Primary Tube Dia. |
1-3/4 inch |
| Primary Tube Diameter |
1.750 in. |
| Primary Tube Diameter (in) |
1.750 |
| Primary Tubing Diameter |
1-3/4" |
| Product Type |
Exhaust Headers, Headers |
| Reducers Included |
Yes |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| SEMA Emissions Code |
3 |
| Series |
Scavenger Series Headers |
| Sub Category |
Exhaust Manifolds |
| Subcategory |
Headers and Parts |
| Tube Diameter |
1.750 in. |
| Tube Direction |
Up Swept |
| Tube Gauge |
16 |
| Tube Length |
Equal Length |
| Tube Lengths |
Equal Length |
| Tube Size |
1.75 |
| Tube Wall Thickness |
16 |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| part type |
Exhaust Header |
