Fits 2015-2020 Ford F-150 trucks with 2.7L/3.3L/3.5L Ecoboost, 3.5L Ti-VCT and 5.0L engines. - Moderate sound

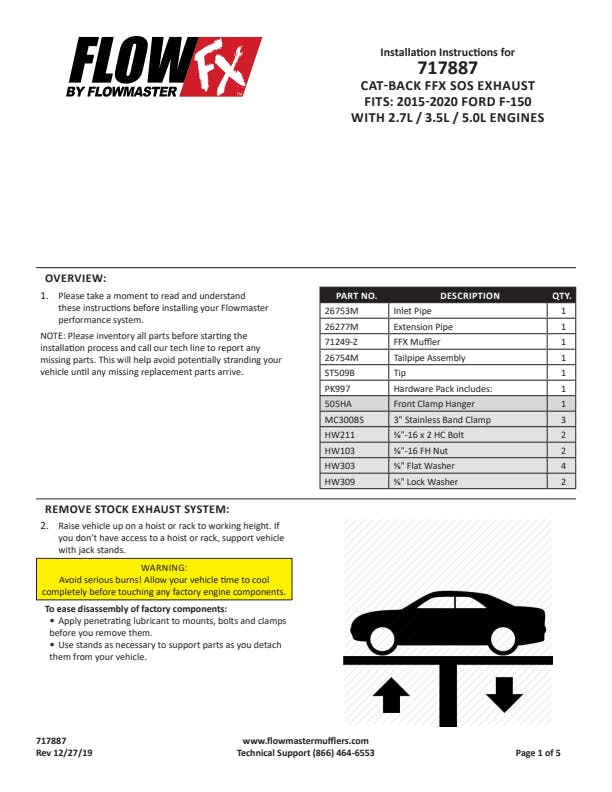

Introducing the new Flow FX® Cat-back exhaust system for the 2015-2020 Ford F-150 with 2.7L, 3.3L, 3.5L Ecoboost, 3.5L Ti-VCT and 5.0L engines. This stainless steel performance exhaust system bolts up to the factory flange with a large 3.00-inch mandrel-bent tube flowing into the "straight-through" Flow FX performance muffler. The large single mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster® name. This system creates a deep powerful sound outside the vehicle with a moderate tone inside the cab and utilizes the factory hanger locations for an easy installation. Includes all necessary parts, hardware and easy to follow detailed instructions.
- Large 4.50-inch Black Ceramic Coated Stainless Steel Tip
- Flow FX "Straight-through" Performance Muffler
- Uses the Factory Hanger Locations
- Full Stainless Steel Construction
- Easy and Quick Installation
- Lifetime Limited Warranty
- Deep and Powerful Sound
- Mandrel-bent Tubing
Information:
Fits all 2/4 wheel drives and wheelbases except std cab/short bed. Does not fit the 3.5L Raptor trucks.
Application Summary:
| Year |
Make/Model |
| 2015-2020 |
Ford F-150 |
| Attributes |
| Brand |
Flowmaster, Flowmaster |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB (California) Compliant |
Yes |
| Catalytic Converter Included |
No |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust, Exhaust |
| Clamping Type |
Flat Band, Flat Band |
| Clamps Included |
Yes, Yes |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
FlowFX, FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.50, 4.50 |
| Exhaust Tip Finish |
Black Ceramic Coating, Black Ceramic Coating |
| Exhaust Tip Length |
11.00 |
| Exhaust Tip Material |
304 Stainless Steel, 304 Stainless Steel |
| Exhaust Tip Quantity |
1, 1 |
| Exhaust Type |
Cat-Back |
| Exit Position |
Single Side, Single Side Exit |
| Finish |
Natural, Natural |
| Gasket Or Seal Included |
No, No |
| Grade Type |
Performance, Performance |
| Hangers Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3.000 in. |
| Inlet Type |
Flanged, Flanged |
| Life Cycle Status Code |
Available to Order |
| Material |
Stainless Steel, 409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Mounting Bracket Included |
No, No |
| Muffler Body Height |
4.00 |
| Muffler Body Length |
18.00, 18.00 |
| Muffler Body Material |
409 Stainless Steel, 409 Stainless Steel |
| Muffler Body Shape |
Oval, Oval |
| Muffler Body Width |
9.00 |
| Muffler Flanged Inlet |
No, No |
| Muffler Flanged Outlet |
No, No |
| Muffler Included |
Yes |
| Muffler Inlet Diameter |
3, 3.00 |
| Muffler Inlet Inside Diameter |
3.00, 3.00 |
| Muffler Inlet Outside Diameter |
3.13, 3.13 |
| Muffler Outlet Diameter |
3, 3.00 |
| Muffler Outlet Quantity |
1, 1 |
| Muffler Quantity |
1, 1 |
| Muffler Series |
FlowFX, FlowFX |
| Muffler Type |
Absorption, Absorption |
| NAFTA Preference Criterion Code |
B |
| part type |
Exhaust System Kit, Exhaust System |
| Pipe Color |
Silver, Silver |
| Pipe Material |
409 Stainless Steel, Stainless Steel |
| Product Type |
Cat-Back Exhaust, Exhaust System |
| Sale Category |
Exhaust |
| SDR Required Flag |
N |
| Series |
FlowFX Exhaust Kits |
| Single Dual |
Single |
| Sound Level |
Moderate, Moderate |
| Spring Bolt Kit Included |
No, No |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat-back |
| Tail Pipe Diameter |
3.000 in. |
| Tail Pipe Outlet Outside Diameter |
3.00 |
| Tail Pipe Quantity |
1, Single |
| Tail Pipe Tapered Outlet |
No, No |
| Tip Diameter |
4.500 in. |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Shape |
Round |
| Tubing Diameter |
3.000 in., 3.00 |
| Tubing Diameter (IN) |
3 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Type |
Cat-Back, Cat-Back |
| Valve Included |
No, No |
| Valve Type |
Not Applicable, Not Applicable |
| Warning |
California Proposition 65, California Proposition 65 |
| GTIN |
00700042039166 |
