2009-2021 Toyota Tundra with 4.0L, 4.6L, 4.7L or 5.7L engine, 2/4 Wheel Drive - Flow FX Stainless Steel Cat-back Exhaust System - Aggressive to moderate sound

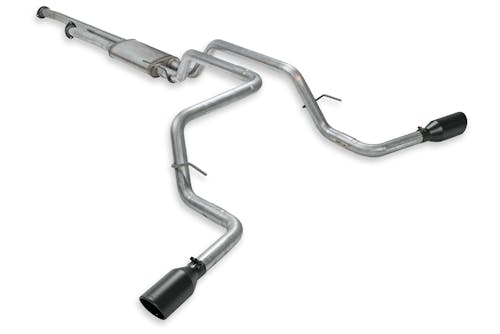

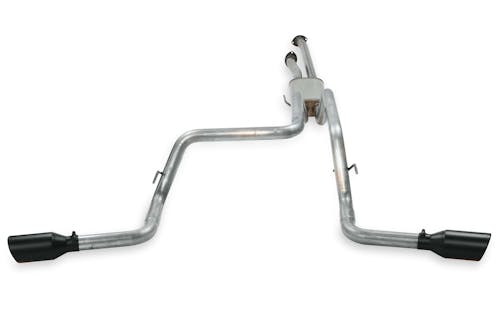

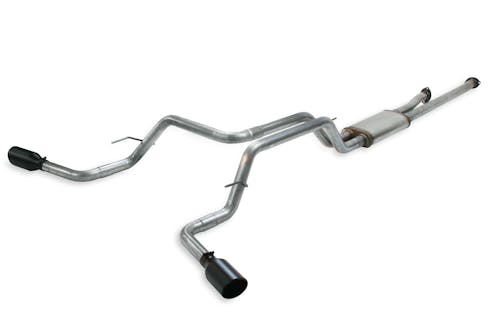

This Flow FX® Cat-back exhaust system is for 2009-2021 Toyota Tundra with 4.0L, 4.6L, 4.7L or 5.7L engine and is a bolt-on emissions legal system with a moderately aggressive exterior sound and a moderate interior tone. The system features all stainless steel construction for long life, and a specially designed dual inlet Flow FX® "straight-through" performance muffler flowing into dual 2.50-inch mandrel-bent tailpipes for maximum performance. The tailpipes exit out the sides behind the rear wheels, which is beneficial for towing, and are finished off with a pair of large 4.50-inch black ceramic coated stainless steel tips for good looks. The system includes all necessary parts and hardware for easy at home installation and is covered by our Lifetime Limited Warranty.
- Large 4.50-inch Black Ceramic Coated Stainless Steel Tips Offer Great Looks

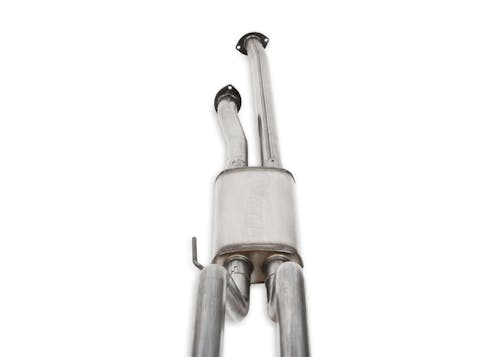

- Flow FX "Straight-through" Performance Muffler for Sound and Performance

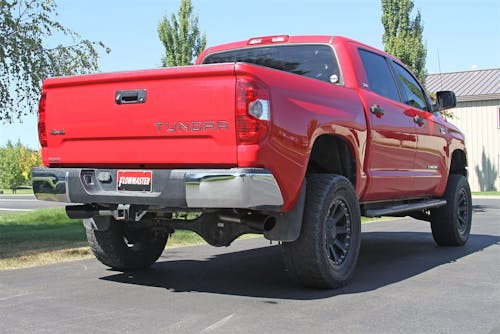

- Dual 2.50-inch Mandrel-bent 16-gauge Tubing Maximizes Exhaust Flow

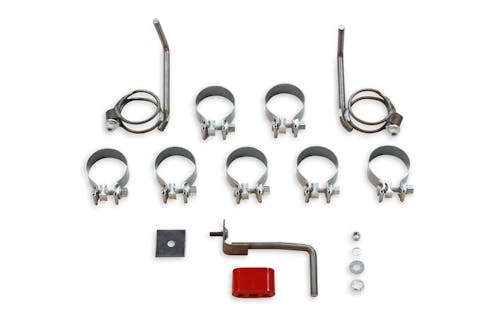

- Uses the Factory Hanger Locations for Easy Installation
- Deep Powerful Performance Sound and Great Tone
- All Stainless Steel Construction for Long Life
- Clears the Factory Spare Tire
- Lifetime Limited Warranty
Information:
Fits 2009-2021 Toyota Tundra with 4.0L, 4.6L, 4.7L or 5.7L engine. 2/4 wheel drive models. Does not fit regular cab/short bed or double cab/long bed models. Only fits 2009 models built after 08/2008.
Application Summary:
| Year |
Make/Model |
| 2009-2021 |
Toyota Tundra |
| Attributes |
| Brand |
Flowmaster |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB (California) Compliant |
Yes |
| Catalytic Converter Included |
No, No |
| Catalytic Converter Quantity |
Not Included |
| Category |
Exhaust, Exhaust |
| Clamping Type |
Flat Band, Flat Band |
| Clamps Included |
Yes, Yes |
| Country of Origin (Primary) |
US |
| Emission Code |
5, 5 |
| Exhaust Series |
FlowFX, FlowFX |
| Exhaust System Kit Type |
Cat-Back |
| Exhaust Tip Diameter |
4.50, 4.50 |
| Exhaust Tip Finish |
Black Ceramic Coating, Black Ceramic Coating |
| Exhaust Tip Length |
11.00 |
| Exhaust Tip Material |
304 Stainless Steel, 304 Stainless Steel |
| Exhaust Tip Quantity |
2, 2 |
| Exhaust Type |
Cat-Back |
| Exit Position |
Dual Out Side |
| Finish |
Natural, Natural |
| Gasket Or Seal Included |
No, No |
| Grade Type |
Performance, Performance |
| Hangers Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Heat Shield |
No |
| Heat Shield Included |
No, No |
| Inlet Inside Diameter |
2.500 in. |
| Inlet Type |
Flanged, Flanged |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2-1/2 |
| Material |
409 Stainless Steel |
| Mount Type |
Uses Factory Hangers, Uses Factory Hangers |
| Mounting Bracket Included |
Yes, Yes |
| Muffler Body Height |
4.00 |
| Muffler Body Length |
18.000 in., 18.00 |
| Muffler Body Length (in) |
18 |
| Muffler Body Material |
409 Stainless Steel, 409 Stainless Steel |
| Muffler Body Shape |
Oval, Oval |
| Muffler Color |
Natural, Silver |
| Muffler Flanged Inlet |
No, No |
| Muffler Flanged Outlet |
No, No |
| Muffler Included |
Yes |
| Muffler Inlet Diameter |
2.5, 2.50 |
| Muffler Inlet Inside Diameter |
2.50 |
| Muffler Inlet Location |
Dual Inlet, Dual |
| Muffler Inlet Outside Diameter |
2.63 |
| Muffler Material |
409S Stainless Steel, 409 Stainless Steel |
| Muffler Outlet Diameter |
2.5, 2.50 |
| Muffler Outlet Location |
Dual Outlet, Dual |
| Muffler Outlet Quantity |
2, 2 |
| Muffler Overall Length |
24.00, 24.00 |
| Muffler Overall Length (in) |
24 |
| Muffler Part Number |
Kit Only, Kit Only |
| Muffler Quantity |
1, 1 |
| Muffler Series |
FlowFX, FlowFX |
| Muffler Shape |
Oval |
| Muffler Type |
Absorption, Absorption |
| NAFTA Preference Criterion Code |
B |
| part type |
Exhaust System Kit, Exhaust System |
| Pipe Color |
Silver, Silver |
| Pipe Material |
409 Stainless Steel, 409 Stainless Steel |
| Product Type |
Exhaust System, Exhaust System |
| Sale Category |
Exhaust |
| SDR Required Flag |
N |
| Series |
FlowFX Exhaust Kits |
| Single Dual |
Dual |
| Sound Level |
Aggressive / Moderate, Aggressive / Moderate |
| Spring Bolt Kit Included |
No, No |
| Sub Category |
Exhaust and Tail Pipes, Exhaust and Tail Pipes |
| Subcategory |
Cat-Back Exhaust Kits |
| System Type |
Cat-back |
| Tail Pipe Diameter |
2.500 in |
| Tail Pipe Outlet Outside Diameter |
2.50 |
| Tail Pipe Quantity |
2, Dual |
| Tail Pipe Tapered Outlet |
No, No |
| Tip Cut |
Angle |
| Tip Diameter |
4.500 in., 4.5 |
| Tip Edge Style |
Rolled |
| Tip Finish |
Black Ceramic, Black Ceramic Coating |
| Tip Length |
11, 11.00 |
| Tip Logo |
Embossed, Embossed |
| Tip Material |
304 Stainless, 304 Stainless Steel |
| Tip Quantity |
2 |
| Tip Shape |
Round |
| Tip Style |
Single Wall |
| Tubing Diameter |
2.500 in., 2.50 |
| Tubing Diameter (IN) |
2.5 |
| Tubing Material |
409S Stainless Steel, 409 Stainless Steel |
| Type |
Cat-Back, Cat-Back |
| Valve Included |
No, No |
| Valve Type |
Not Applicable, Not Applicable |
| Warning |
California Proposition 65, California Proposition 65 |
| GTIN |
00700042039500 |
