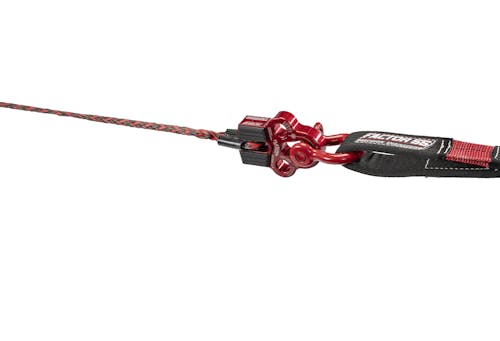

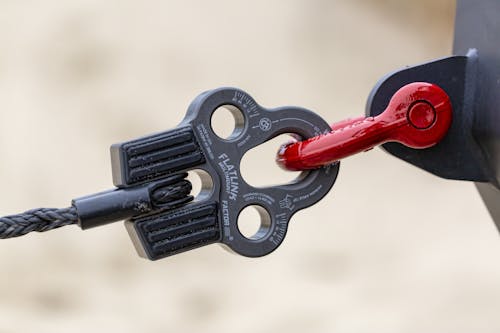

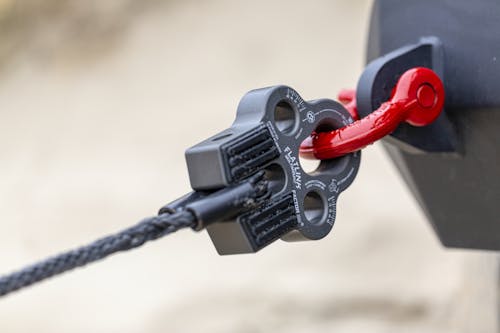

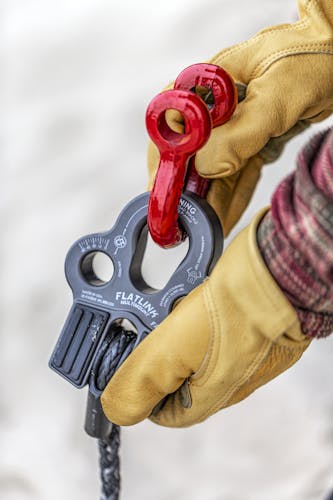

The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques.
Winch Line Shackle Mount Foldable Flatlink Multimount Gray Factor 55. Replace conventional winch hooks with a safer more secure shackle/D-ring. Multiple shackle interface for bridle and off-camber towing. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight and Precision CNC machined 6000 series aluminum. No splicing required - titanium double shear pin design. Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber pads for fairlead protection. Foldable-1.75 inchthick (Compatible with all fairlead license plate mounting brackets). For rope and cable diameters up to 3/8 inch. Fits multiple 3/4 inch screw pin shackles. Oval Hole opening connects to either the pin or bow end of common 3/4 inch screw pin shackles. Oval Hole opening connects to the pin ends of 7/8 inch and 1inch screw pin shackles. Fits over most OEM tow hooks. Warning: Keep forces in line. Do Not Side Load Shackle. Available in Military Specification Anodizing (Mil-A-8625 F Type III) Gray and powder coated finishes. 5/8 inch diameter 6AI-4V titanium double shear pin. Max Load: 16,000 pounds. Ultimate Strength: 40,000 pounds. Weight: 30oz. Made in USA.
Winch Line Shackle Mount Foldable Flatlink Multimount Gray Factor 55. Replace conventional winch hooks with a safer more secure shackle/D-ring. Multiple shackle interface for bridle and off-camber towing. Replace conventional winch hooks with a safer more secure shackle/D-ring. Lightweight and Precision CNC machined 6000 series aluminum. No splicing required - titanium double shear pin design. Designed for both steel cables and synthetic winch ropes. Integrated EPDM rubber pads for fairlead protection. Foldable-1.75 inchthick (Compatible with all fairlead license plate mounting brackets). For rope and cable diameters up to 3/8 inch. Fits multiple 3/4 inch screw pin shackles. Oval Hole opening connects to either the pin or bow end of common 3/4 inch screw pin shackles. Oval Hole opening connects to the pin ends of 7/8 inch and 1inch screw pin shackles. Fits over most OEM tow hooks. Warning: Keep forces in line. Do Not Side Load Shackle. Available in Military Specification Anodizing (Mil-A-8625 F Type III) Gray and powder coated finishes. 5/8 inch diameter 6AI-4V titanium double shear pin. Max Load: 16,000 pounds. Ultimate Strength: 40,000 pounds. Weight: 30oz. Made in USA.

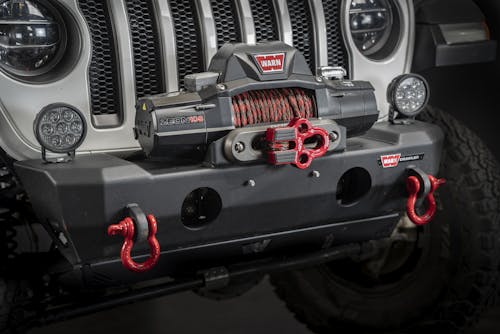

- FlatLink MultiMount is designed for difficult off camber vehicle recovery scenarios where two different winch pull directions are often necessary.?
- The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point.
- Foldable ? 1.75 thick (Compatible with all fairlead license plate mounting brackets)
- For rope and cable diameters up to 3/8?? and fits multiple 3/4?? screw pin shackles
- Lightweight and Precision CNC machined 6000 series aluminum Max Load: 16,000 pounds, Ultimate Strength: 40,000 pounds,
- Made in the USA
- Limited 1 Year Warranty
Information:
Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging| Attributes | |
| Add-On | 00064-01 |
| Color | RED |
| Country of Origin (Primary) | US |
| Finish | Powdercoat |
| GTIN | 00012748095163 |
| Harmonized Tariff Code (Schedule B) | 8431100090 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Material | 6061 Aluminum |
| NAFTA Preference Criterion Code | B |
| SDR Required Flag | N |
| Tubing Diameter | 00064-01 |
| Warranty Time | 1 |
Factor 55 00225-01 Flatlink Multimount Winch Shackle Mount -- Red
Product Information
- Brand: Factor 55
- Product Number: 00225-01
- Availability: Call for Availability at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$286.25
