CURT 56431 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness, Fits Select Ford Ranger
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup. If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford Ranger (see application info to verify fitment). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup. If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford Ranger (see application info to verify fitment). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power.
- Plugs Into Vehicle Wiring To Provide A 7-Way Blade Socket
- Simple Plug-And-Play Design For Less Cutting And Splicing
- 7-Way Connects Tail Brake Reverse Turn Signals Brakes
- Spring-Loaded Dust Cover Keeps Connector Clean When Not In Use
- Slit Loom Keeps Wires Contained And Well Protected
- Backed By A Limited One-Year Warranty
- Made In USA
Application Summary:
| Year | Make/Model |
|---|---|
| 2019-2021 | Ford Ranger |
| Attributes | |
| Box Height in Inches - XA | 2 |
| Box Length in Inches - XA | 7 |
| Box Width in Inches - XA | 4 |
| California Proposition 65 | Yes |
| Class ID | 11 |
| Country of Origin (Primary) | MX |
| Emission Code | Legal US |
| Finish - XA | BLACK PLASTIC |
| GTIN | 00612314564316 |
| Harmonized Tariff Code (Schedule B) | 8544300000 |
| Hazardous Material Code | N |
| Item Class - XA | CME |
| Item Height - XA | 0.000 |
| Item Length - XA | 0.000 |
| Item Width - XA | 0.000 |
| Life Cycle Status Code | Available to Order |
| NAFTA Preference Criterion Code | B |

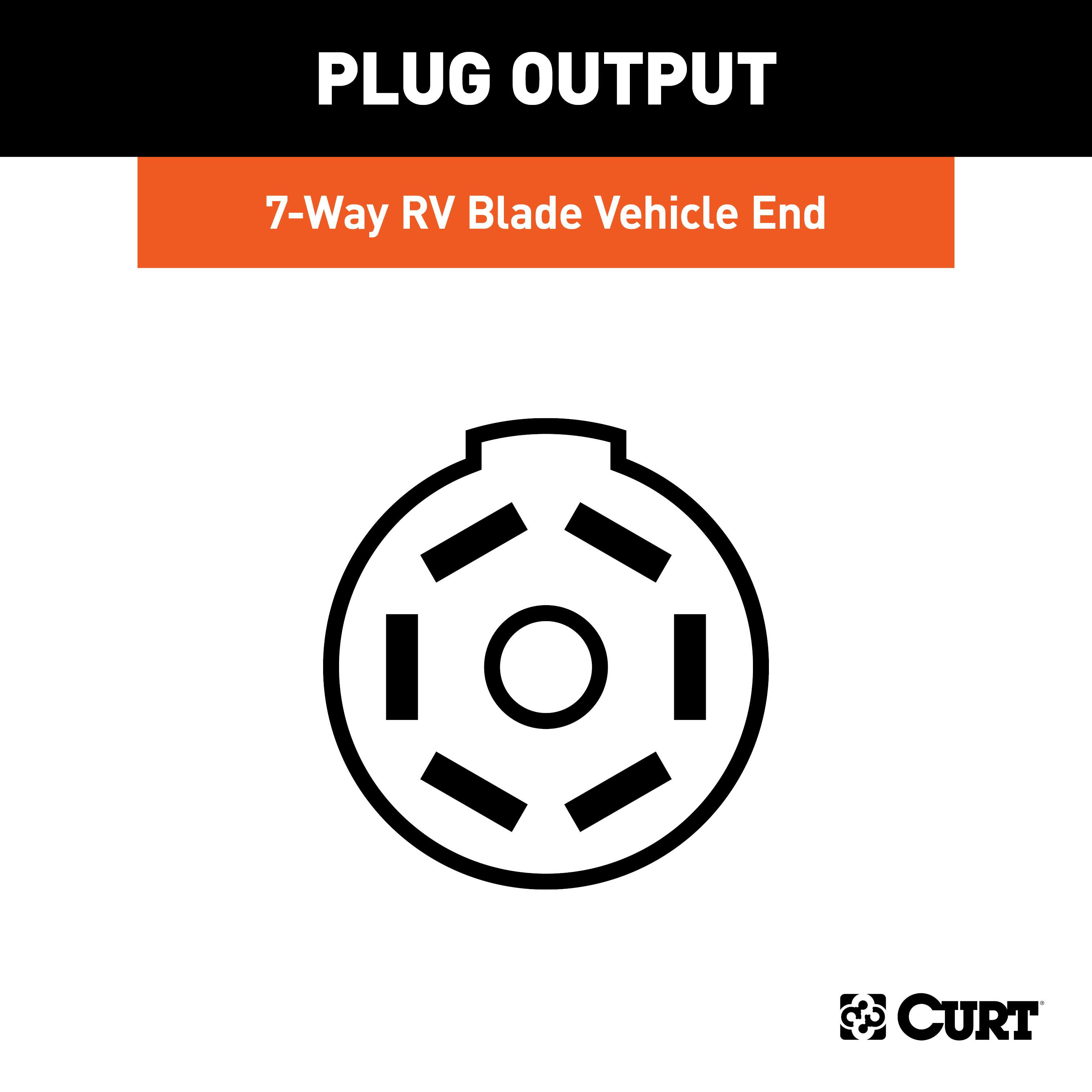

| Output Type | 7-Way RV Blade |
| Parcel Allowed - XA | Yes |
| Product Weight - XA | 0.000 |
| Rate Class - XA | 70.0 |
| Retail Height - XA | 3.000 |
| Retail Length - XA | 11.000 |
| Retail Width - XA | 9.000 |
| SDR Required Flag | N |
| Shipping Weight - XA | 1.481 |
| T-Connector Location | T3 |
| Tail Light Circuits | 10.0 Amps |
| Tariff 301 - XA | No |
| Turn and Brake Circuits | 20.0 Amps |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate which is known to the State of California to cause cancer and Di-n-butyl phthalate which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | One-Year Limited Warranty |
CURT 56431 Custom Wiring Harness, 7-Way RV Blade Output, Select Ford Ranger
Rebates for CURT 56431 Custom Wiring Harness, 7-Way RV Blade Output, Select Ford Ranger
Product Information
- Brand: CURT
- Product Number: 56431
- Availability: 9 in stock at Main Warehouse
*Allow 2-3 business days to ship to your local H&H store. (In stock items only)
$96.95
Professional Installation +$125.00
