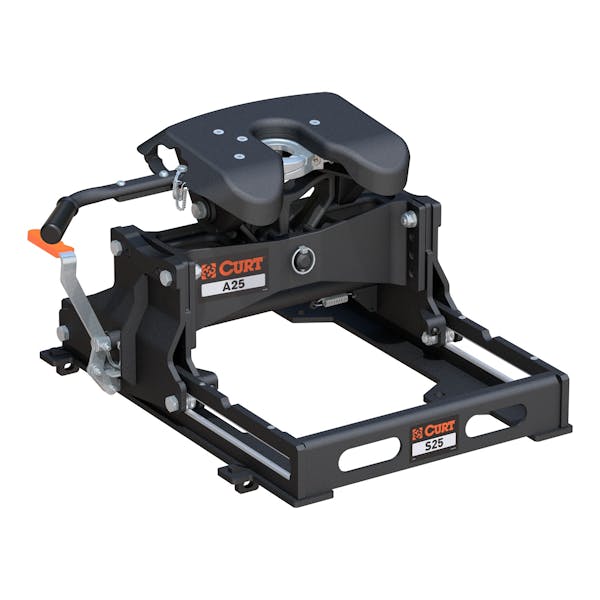

CURT 16551 A25 5th Wheel Slider Hitch for Short Bed Trucks; 25;000 lbs

---

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like our A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A25 5th wheel hitch head comes with the CURT S25 slider to be mounted in a short-bed truck using 5th wheel base rails and a bracket kit (base rails and brackets sold separately). CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12 in. of displacement as well, unlike the more common 10 in., to give you a wide range of motion and plenty of space to get your 5th wheel trailer around any turn. Once installed, the A25 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A25 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

• Cast Yoke With Poly-Torsion Inserts To Suppress Shock Loads And Reduce Noise
• Offers Three Height Adjustment Positions To Adapt To Each Unique Truck Bed
• Fully Articulating Torsion Head For Controlled Coupling And Stable Towing
• Lockable Handle Self-Resets To The Ready-To-Couple Position After Uncoupling
• High-Strength Interlocking Jaws Fully Wrap The Kingpin To Minimize Noise
• Extra Wide Head Opening For Easier Coupling
• Fast One-Pin Head Removal Makes Moving Easy With Smaller Lighter Pieces
• Three-Position Coupling Indicator Clearly Shows Coupling Status
• S20 5Th Wheel Slider #16564 Provides 12 in. Of Travel In The Truck Bed
• Automatically Latches In Both Directions So You Only Have To Exit The Truck Once
• Mounts To All Industry-Standard Base Rails
• Compatible With Kingpin Extension Boxes Including Common Pivoting Pin Boxes

---

Information:

A25 Sliding 5th Wheel Hitch, 25,000 lbs.; Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise; Fully articulating torsion head for controlled coupling and stable towing; Lockable handle self-resets to the ready-to-couple position after uncoupling; High-strength, interlocking jaws fully wrap the kingpin to minimize noise; Extra wide head opening for easier coupling; Fast, one-pin head removal makes moving easy with smaller, lighter pieces; Three-position coupling indicator clearly shows coupling status; S25 5th wheel slider #16574 provides 12 of travel in the truck bed; Automatically latches in both directions so you only have to exit the truck once; Mounts to all industry-standard rails and CURT puck system adapters; Compatible with kingpin extension boxes, including common pivoting pin boxes; Offers three height adjustment positions to adapt to each unique truck bed; Includes a polyethylene lube plate to eliminate messy grease deposits; Tested for safety in accordance with SAE J2638; Protected by a highly durable carbide powder coat finish; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	16551 A25 5th Wheel Slider Hitch for Short Bed Trucks, 25,000 lbs
