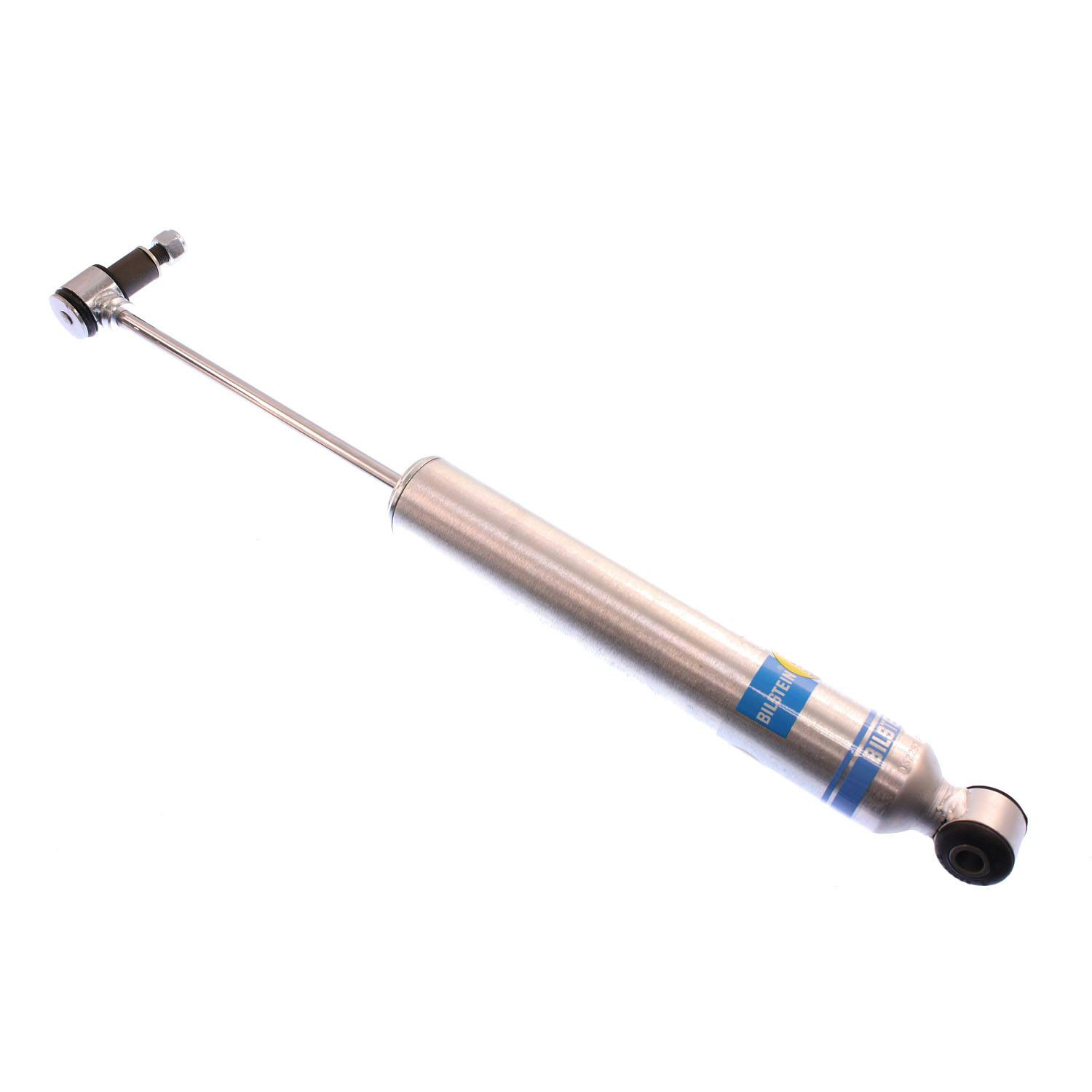

46mm Monotube Steering Damper
Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.
- Allows the ability to dampen minute movements in the steering
- Reduces steering vibrations
- Maintains complete command of your truck, van or SUV at all times
Application Summary:
| Year |
Make/Model |
| 2000-2005 |
Ford Excursion |
| 1999-2004 |
Ford F-250 Super Duty |
| 1999-2004 |
Ford F-350 Super Duty |
| Attributes |
| Body Design |
Smooth Body (Non-Coilover) |
| Body Diameter (ID) |
46mm |
| Body Diameter (OD) |
2.0 in. |
| Boot Included |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) |
14.96 |
| Collapsed Length (mm) |
380.0 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length (IN) |
23.03 |
| Extended Length (mm) |
585.0 |
| Finish |
Zinc Plated |
| GTIN |
00651860624471 |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 12mm |
| PartType |
Steering Stabilizer |
| Piston Diameter |
46mm |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 5100 (Steering Damper) |
| Shaft Diameter |
11mm |
| Spring Max Travel (IN) |
8.07 |
| Stroke/Travel Length (IN) |
8.07 |
| Stroke/Travel Length (mm) |
205.0 |
| Upper Mount Type |
Cantilever |
