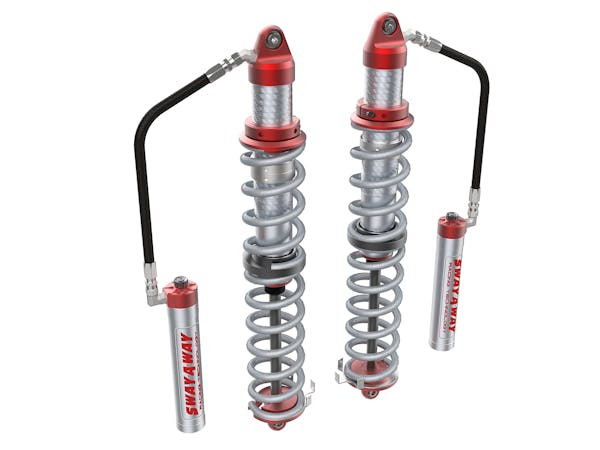

Sway-A-Way 3.0 Rear Coilover Kit w/ Remote Reservoirs and Compression Adjusters Polaris RZR XP 925cc (t)/1000cc 14-20

---

These 3.0” diameter coilovers feature race-winning engineering components that have 20+ years of testing, made into a specifically designed kit that will bolt directly onto your side-by-side. This kit offers adjustable ride height and Sway-A-Way’s new Mid-Speed Compression Adjusters for superior off-road damping curves without sacrificing any off-road comfort or handling. These coilovers are 100% designed and built in the USA and feature bright zinc plated steel cylinder bodies and CNC machined aluminum components. The kit comes pre-set for original ride height and damping while also including a spanner wrench to change spring pre-load and spring crossover stop nuts to allow for fine tuning. Whether you are riding dunes, racing, or blasting across the desert, these coilovers allow you to find your ideal setup for the given conditions. This package is designed as a direct fit application and requires no modifications to the vehicle. Sway-A-Way’s new 2.5 Series Mid-Speed Compression Adjusters mount directly into the remote reservoir. Offering 16 clicks of resolution, the compression adjuster can go from the unrestricted, fully open (soft) position, to the fully closed (hard) position – offering up to a 200% increase in damping force, in just two full turns of the GF polymer adjuster knob. Rebound damping will remain unaffected regardless of the setting and valving combination chosen. Constructed from billet 6061-T6 aluminum, the red anodized and laser etched housing is built to withstand the harshest of environments with excellent corrosion resistance. The metering piston is CNC machined from 7075-T6 aluminum to provide the best service life for high speed applications. Sway-A-Way’s mid-speed compression adjusters are an excellent solution for any application that varies weight often, or that might be used in a variety of terrains where a quick adjustment is desired for optimizing the comfort level of your ride.

• 1” Polished Nitro Steel Shaft for Strength and Durability
• True Dual Rate Springs with Cross Over Rings
• Multi-Seal Carrier to Ensure Zero Leakage

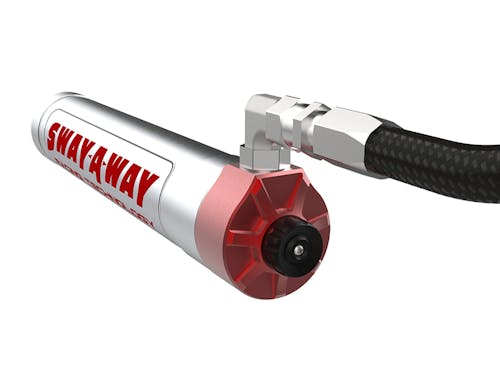

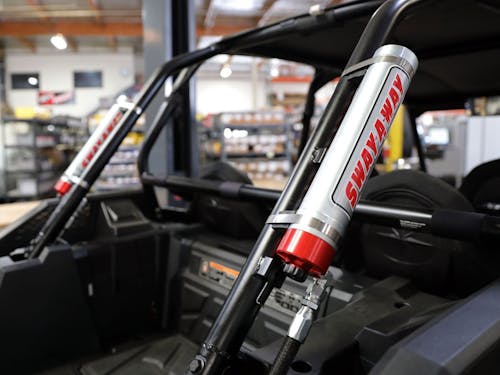

• 2.5” Remote Reservoir with Compression Adjuster
• 16 Clicks of Adjustability for up to +70% Damping
• Specifically Formulated 7wt, Fully Synthetic Shock Oil
• Completely Adjustable and Rebuildable Using Simple Tools
• Direct Fit Installation Requires No

---

Application Summary:

Year	Make/Model
Polaris	RZR XP 925cc (t)/1000cc 14-20
