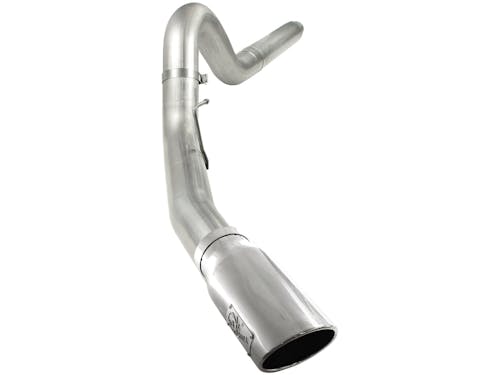

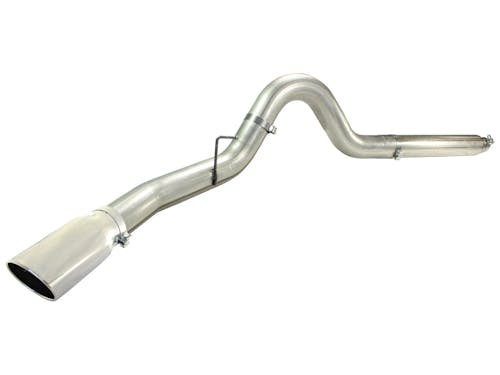

Large Bore-HD 5 IN 409 Stainless Steel DPF-Back Exhaust System w/Polished Tip Ford Diesel Trucks 08-10 V8-6.4L (td)

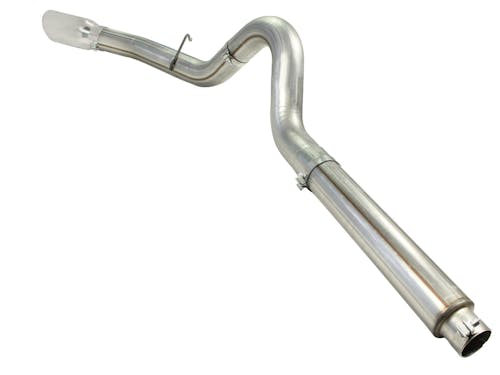

Engineered to perform in the most extreme environments. Constructed from mandrel bent 4 in. 409 stainless steel tubing for maximum flow; increased horsepower; increased torque and lower EGTS. All systems use factory mounting locations providing stability and hassle free installation. High quality OE style flange and band clamps are used for a complete 360 deg. sealing surface. A free flowing 24 in. long muffler is used to absorb high pitch tones producing a powerful sound and unleashing all available horsepower and torque out of your rig. OE style bayonet hangers are used to maintain a stable pipe locations during high vibration and high heat conditions. The bayonet tip holds the hanger bushing in place for an OE style fit that does not change with time.
- 5 in. 409 Stainless Steel Tubing
- Aggressive Sound
- Street Legal Exhaust
- Hassle Free Installation
- Direct Bolt On
- All Hardware Included
- 2 Year Limited Warranty
- 7 in. Polished Tip w/Laser Cut Age Badge
- Increased Flow And Performance
- High Quality Band Clamps

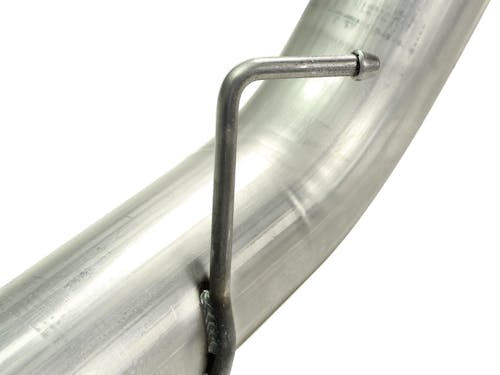

- Bayonet OE Style/Welded On Hangers
Information:
5 in. 409 Stainless Steel Tubing; 7 in. Polished Tip w/Laser Cut Age Badge; Increased Flow And Performance; High Quality Band Clamps; Bayonet OE Style/Welded On Hangers; Aggressive Sound; Street Legal Exhaust; Hassle Free Installation; Direct Bolt On; All Hardware Included; 2 Year Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2008-2010 |
Ford F-250 Super Duty |
| 2008-2010 |
Ford F-350 Super Duty |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Exhaust Type |
DPF-Back |
| Exit Position |
Single Rear |
| Exit Style |
Straight |
| GTIN |
00802959496497 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
5 |
| Inlet Inside Diameter (in.) |
5 |
| Inlet Size (in.) |
5 |
| Life Cycle Status Code |
Available to Order |
| Material |
409 Stainless Steel |
| NAFTA Preference Criterion Code |
B |
| Outlet Outside Diameter |
5 |
| Outlet Outside Diameter (in.) |
5 |
| Outlet Size (in.) |
5 |
| SDR Required Flag |
N |
| Tail Pipe Material |
Stainless Steel |
| Tip Diameter |
7.000 in. |
| Tip Size |
7 |
| Tubing Diameter |
5 |
| Warranty Time |
2 |
